Various models and specifications of spiral air duct forming machine
May 21, 2024Spiral round air ducts can generally be produced and processed by the following four types of spiral air duct machines. They are respectively Mold type spiral duct making machine,S-1.2 type spiral duct machine,S-1.5 type spiral duct machine and S-2.0 type spiral duct machine.

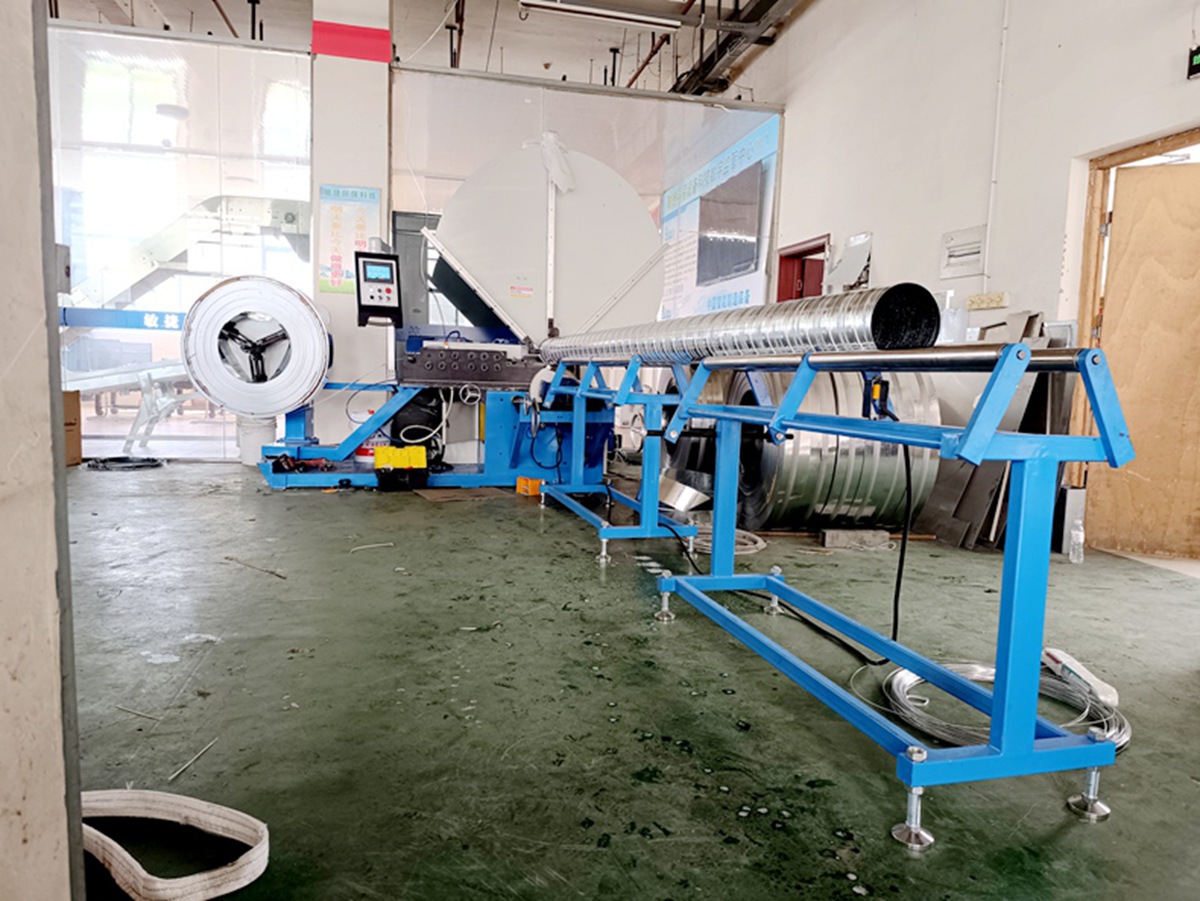

1.Mold Type Spiral Duct Making Machine:
Main Technical Parameters：
| Diameter range | 80-1600mm |
| Thickness range | galvanised steel 0.4-1.3mm,stainless steel 0.4-0.8mm，aluminium 0.4-1.3mm ，other profiles on request. |
| Strip width | Standard 137mm 0.4-1.0mm thichness,Standard 140mm 1.1-1.3mm thichness，other profiles on request. |
| Corrugations | Either one or two beads. |
| Lockseam | Outside duct,on the inside on request. |
| Production speed | Max.60meters/min.depending on material. |
| Cutting System | The patented flying slitter. |
| Options |
Automatic length control system. Controlled corrugation unit,flange slitter. |
| Motor Power |
Main frame：11KW Cooling water pump：0.25KW |
| Weight | 2900kg |
| Dimension |
Machine：2000mmx1700mmx1450 Material rack：2450mmx1200mmx1200mm |
Video presentation：
2.S-1.2 type Spiral Duct Machine：
Main Technical Parameters：
| Diameter range | 80-1500mm |
| Thickness range | galvanised steel 0.4-1.2mm,stainless steel 0.4-0.8mm |
| Width of strip | Standard 137mm |
| Strip speed | 1-38m/min |
| Lockseam | Outside duct,on the inside on request. |
| Motor Power |
Main frame：5.5KW Cutting power：4KW |
| Cutting System |
Saw blade cutting or Plasma cutting |
| Weight | 1700kg |
| Dimension | 2800mm*2000mm*2100mm |
Video presentation：
3.S-1.5 type Spiral Duct Machine：
Main Technical Parameters：
| Diameter range | 100-1500mm |
| Thickness range | galvanised steel 0.4-1.5mm,stainless steel 0.4-0.8mm |
| Width of strip | Standard 137mm |
| Strip speed | 1-38m/min |
| Lockseam | Outside duct,on the inside on request. |
| Motor Power |
16.5KW |
| Cutting System |
Saw blade cutting and Plasma cutting |
| Weight | 2200kg |
| Dimension | 3000mm*2100mm*2250mm |
Video presentation：Please contact us to send.
4.S-2.0 type Spiral Duct Machine：
Main Technical Parameters：
| Diameter range | 100-2000mm |
| Thickness range | galvanised steel 0.4-2.0mm,stainless steel 0.4-0.8mm |
| Width of strip | Standard 137mm |
| Strip speed | 1-38m/min |
| Lockseam | Outside duct,on the inside on request. |
| Motor Power |
16.5KW |
| Cutting System |
Saw blade cutting and Plasma cutting |
| Weight | 2300kg |
| Dimension | 3800mm*2160mm*2720mm |
Video presentation：Please contact us to send.
Different models and specifications require different board requirements. If you are considering purchasing, please contact us.
