Small CNC Hydraulic Press Brake

Video Presentation

Product Display

Key Attributes

1.Automatic Level ：Fully Automatic

2.Condition：New

3.Material / Metal Processed：Stainless steel

4.Weight (KG)：1030

5.Key Selling Points：Flexible Manufacturing

6.Slider Stroke (mm)：100 mm

7.Throat Depth (mm)：200 mm

8.Width of Working Table (mm)：1150 mm

9.Dimension：1650*1150*1700

10.nominal pressure：300KN

11.Bending Length：1600mm

12.Column spacing：1280mm

13.cylinder stroke：80mm

14.Opening height：190mm

15.throat depth：200mm

16.Workbench thickness：20mm

17.Workpiece straightness：0.4/m

18.Rear material blocking stroke：400mm

19.Slide thickness：16mm

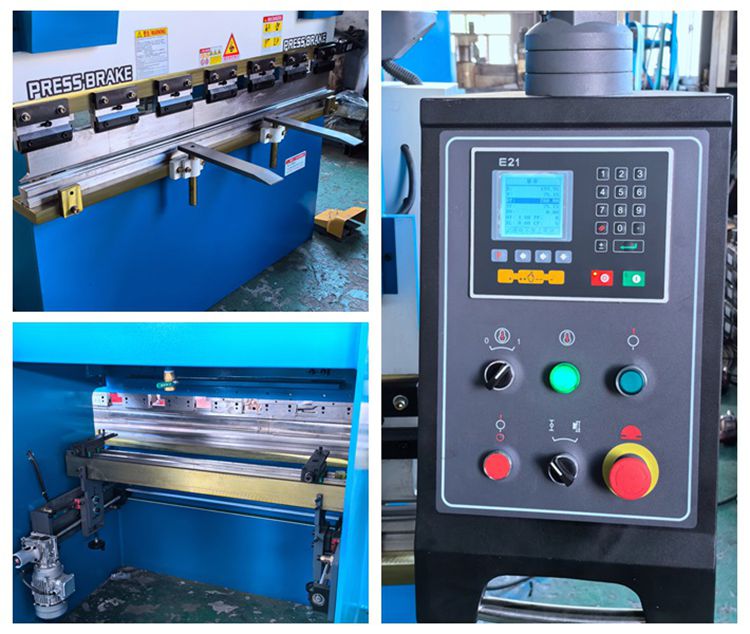

Detailed explanation of CNC system

1.E21S is a CNC device suitable for use in shearing and bending machines. The device adopts a 160 * 160 dot matrix display screen and has synchronous adjustment functions for the x and y axes.

2.Rear material positioning control.

3.Intelligent positioning function.

4.Unidirectional and bidirectional positioning functions effectively eliminate screw clearances.

5.Refusal and material evasion function.

6.Automatic search reference point function.

7.One click backup and recovery function for parameters.

8.Quick position teaching function.

9.40 multi-step program storage spaces, each program has 25 steps.
